Name: Binokularni mikroskop BM-180 SP
SKU: 7181
Price: 1.00 EUR
Availability: InStock

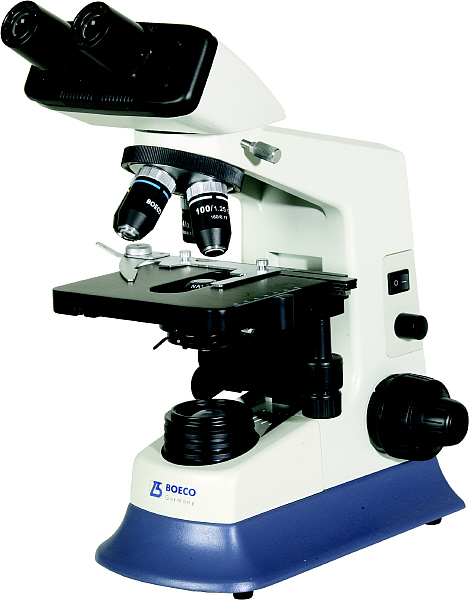

Binokularni mikroskop BM-180 SP

Brendovi: Boeco

1,00 €

Brendovi:: Boeco

OUR STANDARD MICROSCOPE FOR SCIENTIFIC,MEDICAL AND EDUCATION NEEDS.

Art.No	Model	Head	Objective type	Objective Magnification	Voltage
BOE 1800.200	BM-180/SP	Binocular, Sliding	Semi-plan-Achromatic	4X, 10X, 40X, 100X (Oil)	220 V

BOE 1800.230	BM-180/T/SP	Trinocular, Sliding	Semi-plan-Achromatic	4X, 10X, 40X, 100X (Oil)	220 V

Specification:
Magnification:	40X- 1600X
Optical Head:	Sliding Binocular Head, Interpupillary Distance 55 – 75 mm
Nosepiece:	Quadruple revolving nosepiece
Eyepiece:	Pair Eyepiece WF 10X /18 mm Widefield Pair Eyepiece P 16X
Objectives:	BOECO Semi-plan Achromat DIN Objective 4x/0.10 BOECO Semi-plan Achromat DIN Objective 10x/0.25 BOECO Semi-plan Achromat DIN Objective 40x/0.65, spring loaded BOECO Semi-plan Achromat DIN Objective 100x/1.25, Oil, spring loaded
Stage:	Double layer mechanical specimen stage. 140 x 140 mm Travel area 75 x 50 mm, Right hand stage handle
Focusing:	Low position, coaxial coarse and calibrated fine focus control, with graduation reading 2 microns per division. Total focusing range 20 mm., Safety autofocus stop unit.
Condenser:	Abbè Brightfield condenser, n.A. 1,25, Integrated Iris diaphragm and filter tray. With rack & pinion height adjustment
Illumination:	6V 20W Halogen, light intensity adjustable.
Body /power:	Sturdy body with supportive rubber and inbuilt power supply 110-240V
Supplied with:	Dust cover, blue + green filter, immersion oil, 1 spare halogen bulb and instruction manual
Dimension:	170(W) x 250(D) x 375(H) mm
Weight:	Netweight 7,65 kgs, Grossweight 9,5 kg
Packing:	Two styrofoam shelves in a cardboard box, 290(W)x330(D)x530(H) mm
